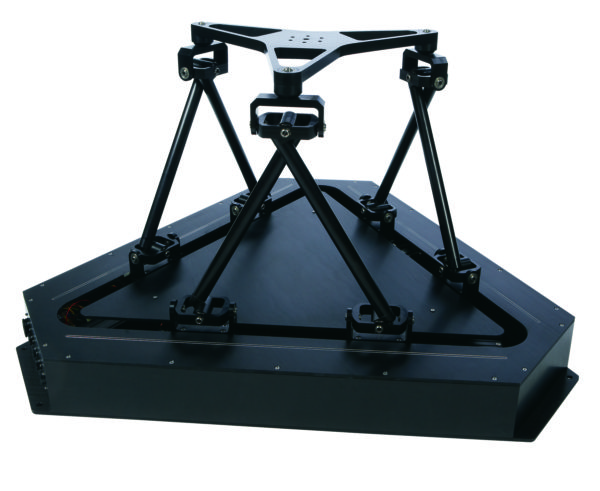

The Hexapod stands as a compact and robust six degrees of freedom parallel robotic motion platform, capable of high-acceleration movement handling up to 100 kg. Distinguishing itself from conventional Stewart platforms, this Hexapod utilizes advanced electrical motors, ensuring precision, responsiveness, and minimal maintenance.
Comprised of six linear ball-screw actuators, each driven by dedicated DC motors, this system operates on a high-quality, low backlash linear guide, providing a substantial 30 cm total travel distance. The high torque direct drive motor propels the ball-screw mechanism, while a revolute joint securely attaches the arms to individual motors. To enhance safety, a motor brake control is implemented, automatically engaging the Hexapod’s brakes when joint limits are reached. Optical encoders offer motor position feedback for all six motors, accurately measuring angular positions. Additionally, an optional ATI force/torque sensor can be integrated onto the end-effector, facilitating the capture of comprehensive force and torque data across all degrees of freedom.
The following additional components are required to complete your workstation, and are sold separately:
