Linear Flexible Joint
Item Number:
782490-01
The Linear Flexible Joint experiment will help your students learn how to model and control real-world dynamic systems such as flexible couplings and gearboxes.

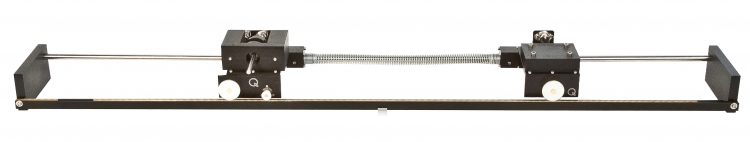

The Linear Flexible Joint is a passive linear cart that connects to the Linear Servo Base Unit through a linear spring. As an implementation of the classical mass-damper-spring quadratic system, the linear flexible joint is an ideal textbook-type experiment. The experiment is useful in the study of vibration analysis and resonance.
Features
- High-resolution optical encoder to sense cart position
- Easy-connect cables and connectors
- Fully compatible with MATLAB®/Simulink® and LabVIEW™
Courseware
Modeling Topics
- Derivation of dynamic model using Lagrange
- State-space representation
- Parameter estimation
- Model validation
Control Topics
- Linear-quadratic regulator (LQR)
- Vibration control

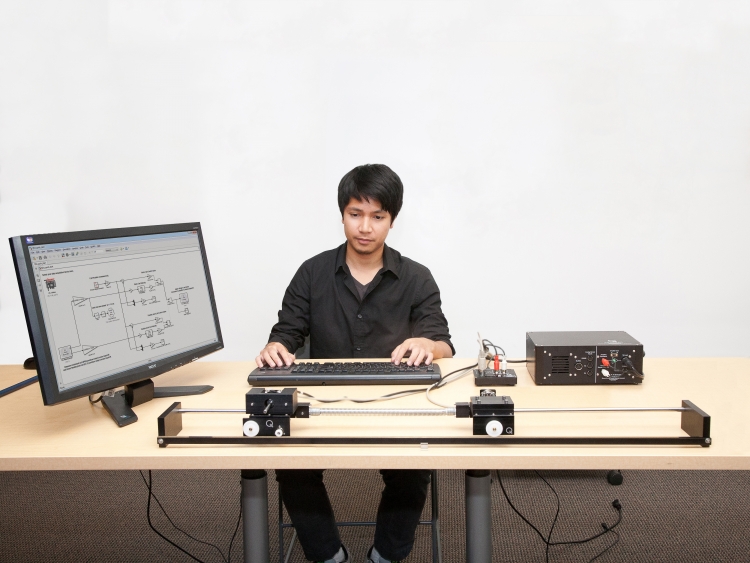

Workstation Configuration
The following additional components are required to complete your workstation, and are available separately:
For Simulink
- QUARC® add-on for MATLAB®/Simulink®
- Linear Servo Base Unit
- Quanser VoltPAQ-X1 linear voltage amplifier
- One of the following DAQ devices:
- Quanser Q2-USB
- Quanser Q8-USB
- Quanser QPIDe
For LabVIEW
- Quanser Rapid Control Prototyping (Q-RCP) Toolkit® add-on for NI LabVIEW™
- Linear Servo Base Unit
- Quanser VoltPAQ-X1 linear voltage amplifier
- One of the following DAQ devices:
- NI CompactRIO with Quanser Q1-cRIO
- NI myRIO with Quanser Terminal Board
- Quanser Q2-USB
- Quanser Q8-USB
- Quanser QPIDe
