Air Conditioning Trainer

Item Number:

EC1501V - EXPERIMENT

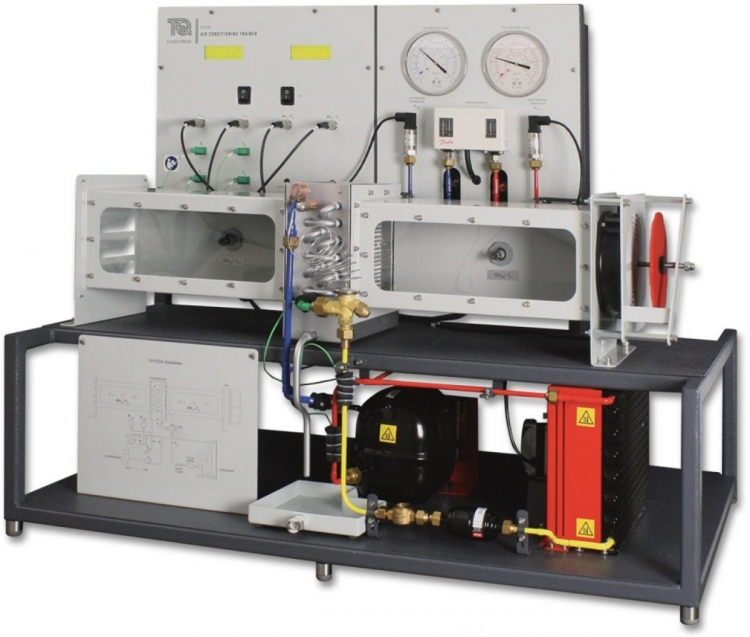

This training developed by TecQuipment unit allows students to investigate air conditioning at a basic level. Students can use P-H charts and psychrometric charts for their calculations and discover the enthalpy change.

The unit features an air-cooled condenser unit connected to an evaporator located in an air duct. The air duct contains relative humidity and temperature sensors on both sides of the evaporator. A small fan provides airflow down the duct and can be manually adjusted.

The refrigeration circuit features high and low-pressure gauges, a pressure switch, sight glass, filter dryer, and TEV valve. The circuit also includes pressure transducers that connect to the instrumentation.

Four thermocouples placed around the refrigeration circuit allow observation of temperatures, these can be used for the calculation of potential superheating and sub-cooling.

Learning Outcomes

Learn to use Psychrometric charts
Determine enthalpy change in the air flow
Learn to use a Pressure-Enthalpy chart
Determine Coefficient of Performance (COP)
Determine superheat and sub-cooling
Isentropic and non-icentropic efficiencies of compression stage
Effect of air flow on COP

Key Features

Pressure and temperature measurements taken around the refrigeration circuit
Relative humidity and temperature measured upstream and downstream of the evaporator
LCD display of all measured parameters
VDAS^® connectivity included featuring data acquisition via USB
VDAS^® software allows students to visualise experimental parameters using Psychrometricand Pressure-Enthalpy charts
Refrigeration circuit colour-coded to international standards
